TVS900 Supercharger Upgrade Kit

Upgrade an earlier FFS MP62 Supercharger Kit to the TVS900. This complete conversion kit replaces the MP62 with a brand-new, higher-efficiency TVS900 system with greater power capability.

Why the TVS900

Magnuson’s TVS900 uses Eaton’s sixth-generation Twin Vortices Series rotor technology, also used in the Corvette ZR-1, Cadillac CTS-V, and some Mustang GT500s.

• Pair of four-lobe, high-helix rotors
• 160 degrees of overall rotor twist
• Magnuson’s patented high-flow housing
• Requires less power to drive
• Delivers cooler discharge temperatures
• Quieter than many competing superchargers

FFS developed this conversion as a direct bolt-on replacement for the MP62 supercharger used in earlier production FFS kits.

CARB: For its listed applications, the FFS TVS900 configuration is CARB-exempt under Executive Order D-617-2 when supplied and installed in the EO configuration. The earlier FFS MP62 system was covered under Executive Order D-617.

Included

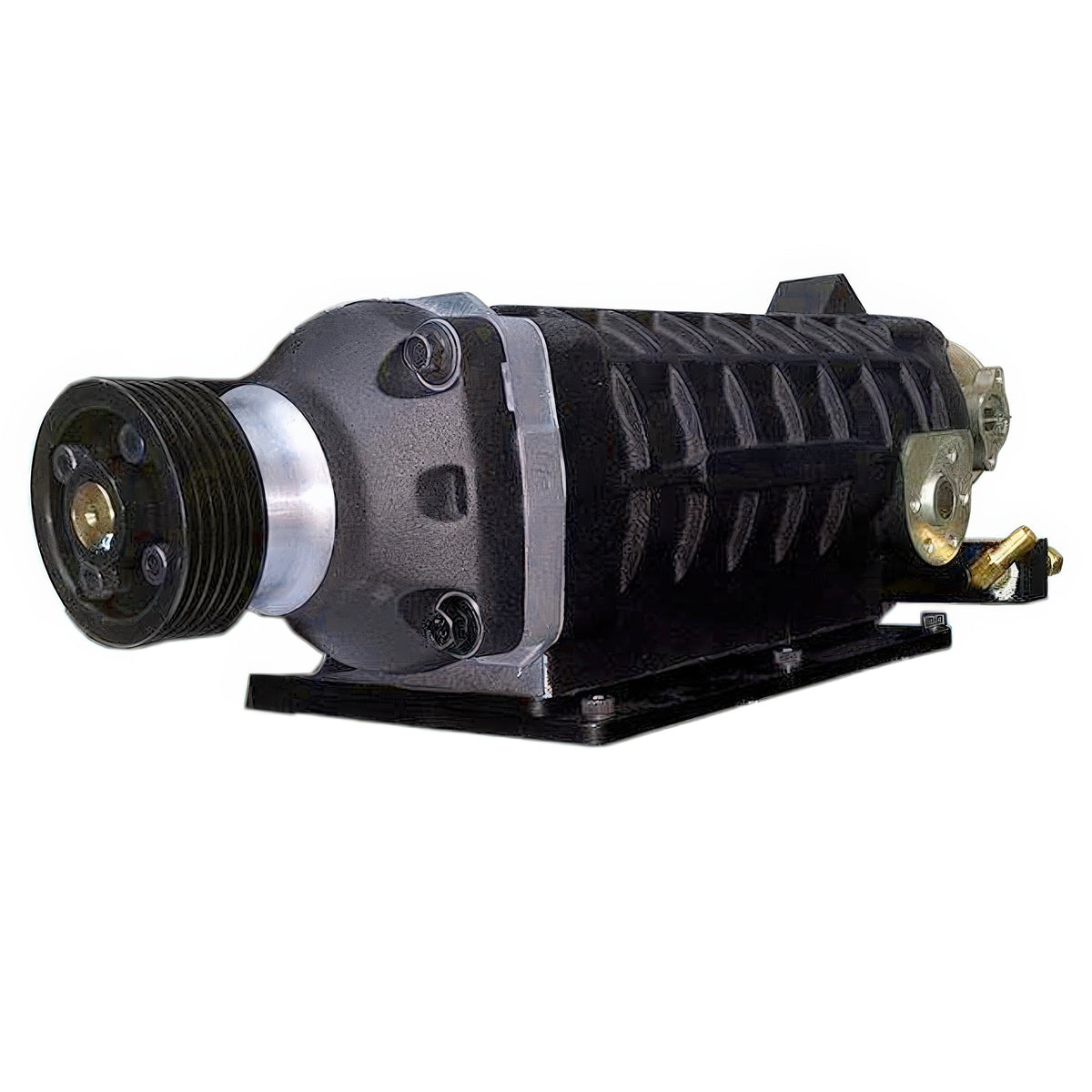

• TVS900 sixth-generation supercharger
• TVS900 65mm supercharger pulley with hardware
• TVS900 tension-bracket assembly
  • TVS900 tensioner bracket
  • TVS900 tensioner-bracket spacers
  • TVS900 tensioner-bracket hardware
• TVS900 tensioner spacer with hardware
• 115mm crank pulley with hardware
• Serpentine belt
